Another example of using SQL to just explore data before doing any real analysis.

(Notes incomplete…)

Data to be posted…

Informational links

About the data source

Exploring the White House visitors database from the White House

The Right-Wing Media's Failed White House Log Conspiracies - Media Matters

Get the count of total visitors

TKaggregate(I'll link to the lesson…)

SELECT COUNT(*)
FROM whvisitors;
COUNT(*)
4837028

Get the time span of the database

SELECT MIN(APPT_START_DATE),
  MAX(APPT_START_DATE)
FROM whvisitors;
MIN(APPT_START_DATE) MAX(APPT_START_DATE)
1/14/14 9/9/14

Ignoring bad date data (for now)

Oops, looks like the date formats are inconsistent. Rather than try to fix it, let's just work with dates that are properly formatted:

SELECT MIN(APPT_START_DATE),
  MAX(APPT_START_DATE)
FROM whvisitors
WHERE APPT_START_DATE BETWEEN '2009' AND '2016';
MIN(APPT_START_DATE) MAX(APPT_START_DATE)
2009-01-20 11:30:00PM 2015-06-30 21:30

Just checking to see how many bad dates there are

And about how many are not properly formatted?

SELECT COUNT(*)
FROM whvisitors
WHERE APPT_START_DATE NOT BETWEEN '2009' AND '2016';
COUNT(*)
18632

Not too many.

Aggregate counts

How many visitors per year?

SELECT SUBSTR(APPT_START_DATE,1, 4) AS yr, COUNT(*)
FROM whvisitors
WHERE APPT_START_DATE BETWEEN '2009' AND '2016'
GROUP BY yr;
yr COUNT(*)
2009 276641
2010 968676
2011 954156
2012 932131
2013 432240
2014 837403
2015 417144

Number of visitors by day?

SELECT DATE(APPT_START_DATE) AS day, COUNT(*)
FROM whvisitors
WHERE APPT_START_DATE BETWEEN '2009' AND '2016'
GROUP BY day
ORDER BY day ASC
LIMIT 5;
day COUNT(*)
  5199
2009-01-20 51
2009-01-21 9
2009-01-22 2
2009-01-23 3

What does it look like from the bottom?

SELECT DATE(APPT_START_DATE) AS day, COUNT(*)
FROM whvisitors
WHERE APPT_START_DATE BETWEEN '2009' AND '2016'
GROUP BY day
ORDER BY day DESC
LIMIT 5;
day COUNT(*)
2015-06-30 1224
2015-06-29 1013
2015-06-28 605
2015-06-27 4031
2015-06-26 5656

For all we know, this is a result of 2009 not having many records…

Examining who is visited

How exactly is President Obama referred to in this field? And how reliable is it?

Scoping out the names

SELECT visitee_namelast, visitee_namefirst
FROM whvisitors
LIMIT 5;

A whole lot of empty fields

visitee_namelast visitee_namefirst






Looking for valid names

SELECT visitee_namelast, visitee_namefirst
FROM whvisitors
WHERE visitee_namelast IS NOT NULL AND
  visitee_namefirst IS NOT NULL
LIMIT 5;

A little better:

visitee_namelast visitee_namefirst
& POTUS
& POTUS
& POTUS
& POTUS
& POTUS

Doing a group count

SELECT visitee_namelast,
  visitee_namefirst,
  COUNT(*) AS ct
FROM whvisitors
WHERE visitee_namelast IS NOT NULL
  AND visitee_namefirst IS NOT NULL
GROUP BY visitee_namelast, visitee_namefirst
ORDER BY ct DESC
LIMIT 10;
visitee_namelast visitee_namefirst ct
OFFICE VISITORS 2943727
Lierman Kyle 18465
Lambrew Jeanne 18256
/ POTUS 12024
HETZEL OFFICE 10688
Jenkins Brad 7208
Foster Heather 6834
BOLLINGER CHELSEA 6662
DOEBLER MAX 6110
Utech Dan 6082

Who is "Kyle Lierman"? Why are there so few famous names? Where's FLOTUS?

The effect of NULLs

SELECT visitee_namelast,
  visitee_namefirst,
  COUNT(*) AS ct
FROM whvisitors
WHERE visitee_namelast IS NULL
  OR visitee_namefirst IS NULL
GROUP BY visitee_namelast, visitee_namefirst
ORDER BY ct DESC
LIMIT 10;

Looks like a lot of rows have empty name fields. And also, different capitalization:

visitee_namelast visitee_namefirst ct
  POTUS 138966
POTUS   75951
  POTUS/FLOTUS 38274
    24802
  potus 14924
  FLOTUS 14923
FLOTUS   6159
POTUS/FLOTUS   5622
VPOTUS   4279
  VPOTUS 4109

For now, we need to include NULLs

SELECT visitee_namelast,
  visitee_namefirst,
  COUNT(*) AS ct
FROM whvisitors
GROUP BY visitee_namelast, visitee_namefirst
ORDER BY ct DESC
LIMIT 10;

|——————-+——————-+———-| | visitee_namelast | visitee_namefirst | ct | |——————-+——————-+———-| | OFFICE | VISITORS | 2943727 | | | POTUS | 138966 | | POTUS | | 75951 | | | POTUS/FLOTUS | 38274 | | | | 24802 | | Lierman | Kyle | 18465 | | Lambrew | Jeanne | 18256 | | | potus | 14924 | | | FLOTUS | 14923 | | / | POTUS | 12024 | |——————-+——————-+———-| {.table-sql}

Matching on UPCASE

We still can't get an accurate count, so let's use UPPER

SELECT UPPER(visitee_namelast),
  UPPER(visitee_namefirst),
  COUNT(*) AS ct
FROM whvisitors
GROUP BY UPPER(visitee_namelast),
  UPPER(visitee_namefirst)
ORDER BY ct DESC
LIMIT 10;

This is better:

UPPER(visitee_namelast) UPPER(visitee_namefirst) ct
OFFICE VISITORS 2943728
  POTUS 153936
POTUS   75951
  POTUS/FLOTUS 38749
    24802
LIERMAN KYLE 19881
LAMBREW JEANNE 18939
  FLOTUS 15246
/ POTUS 12024
DOEBLER MAX 10712

Aliasing columns

SELECT UPPER(visitee_namelast) AS v_last_name,
  UPPER(visitee_namefirst) v_first_name,
  COUNT(*) AS ct
FROM whvisitors
GROUP BY v_last_name,
  v_first_name
ORDER BY ct DESC
LIMIT 10;
v_last_name v_first_name ct
OFFICE VISITORS 2943728
  POTUS 153936
POTUS   75951
  POTUS/FLOTUS 38749
    24802
LIERMAN KYLE 19881
LAMBREW JEANNE 18939
  FLOTUS 15246
/ POTUS 12024
DOEBLER MAX 10712

Working with NULLs

Using IFNULL to normalize some values

There's some funkiness to how functions work on NULL values. It's better to use IFNULL to explicitly set the value, i.e "if NULL, make the field to 'WHATEV'":

SELECT
  UPPER(IFNULL(visitee_namelast, 'whatev!!!')) AS v_last_name,
  UPPER(IFNULL(visitee_namefirst, 'whatev!!!')) AS v_first_name,
  COUNT(*) AS ct
FROM whvisitors
GROUP BY v_last_name, v_first_name
ORDER BY ct DESC
LIMIT 10;
v_last_name v_first_name ct
OFFICE VISITORS 2943728
WHATEV!!! POTUS 153936
POTUS WHATEV!!! 75951
WHATEV!!! POTUS/FLOTUS 38749
WHATEV!!! WHATEV!!! 24802
LIERMAN KYLE 19881
LAMBREW JEANNE 18939
WHATEV!!! FLOTUS 15246
/ POTUS 12024
DOEBLER MAX 10712

Do some hacky normalization of names

Sometimes visitors to POTUS are listed as first name POTUS and other times, as just last name POTUS. Which means visits to the POTUS count as their own rows:

v_last_name v_first_name ct
WHATEV!!! POTUS 153936
POTUS WHATEV!!! 75951

This is kind of inconvenient.

So let's make a new kind of column:

SELECT
  UPPER(IFNULL(visitee_namelast, visitee_namefirst)) AS v_last_name,
  UPPER(IFNULL(visitee_namefirst, visitee_namelast)) AS v_first_name,
  COUNT(*) AS ct
FROM whvisitors
GROUP BY v_last_name, v_first_name
ORDER BY ct DESC
LIMIT 10;

Now all the POTUS / POTUS are put together:

v_last_name v_first_name ct
OFFICE VISITORS 2943728
POTUS POTUS 229887
POTUS/FLOTUS POTUS/FLOTUS 44371
    24802
FLOTUS FLOTUS 21407
LIERMAN KYLE 19881
LAMBREW JEANNE 18939
/ POTUS 12024
DOEBLER MAX 10712
HETZEL OFFICE 10688

Altering the database

The previous call was really slow. That's because we basically created a new column, something the database hasn't indexed (i.e. organized) for a optimized, efficient search.

Adding a column

One such solution is to first add a new column

ALTER TABLE whvisitors
  ADD COLUMN custom_visitee_cat_name VARCHAR;

Fill a column with values

This is known as doing an UPDATE operation. Note that it is a totally different structure than SELECT:

UPDATE whvisitors
  SET custom_visitee_cat_name =
          UPPER(IFNULL(visitee_namelast, visitee_namefirst))
             || ', '
             || UPPER(IFNULL(visitee_namefirst, visitee_namelast));

Let's check out the result of that:

SELECT custom_visitee_cat_name,
  COUNT(*) AS ct
FROM whvisitors
GROUP BY custom_visitee_cat_name
ORDER BY ct DESC
LIMIT 10;
custom_visitee_cat_name ct
OFFICE, VISITORS 2943728
POTUS, POTUS 229887
POTUS/FLOTUS, POTUS/FLOTUS 44371
  24802
FLOTUS, FLOTUS 21407
LIERMAN, KYLE 19881
LAMBREW, JEANNE 18939
/, POTUS 12024
DOEBLER, MAX 10712
HETZEL, OFFICE 10688

Index a column

That above query ended up being extremely slow – nearly 30 seconds on a fast laptop.

Now that we know that we want to look up things by custom_visitee_cat_name, the next thing we want to do is index that column, i.e. tell the database that, "Oh hey, we're going to be doing a lot of lookups on this, so get your —-in order plz"

Indexing a column isn't necessary, but it turns otherwise impossible/intolerable queries into speedy queries:

CREATE INDEX custom_visitee_cat_name_on_whvisitors ON
  whvisitors(custom_visitee_cat_name);

Repeating the previous GROUP BY query should be as much as 10 times faster.

What kinds of "POTUS" are there?

Alright, we now know that 'POTUS' refers to the "President of the United States."

Not everyone knows that: via the r/veep subreddit:

I am English and have watched all four seasons. Today I learned that POTUS was not the surname of the president before Selina…I am an idiot

But we see that there are a lot of variations of POTUS…just how many exactly?

SELECT COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_cat_name
  LIKE 'POTUS%';

What about things that end in 'POTUS' ?

ct
275244
SELECT COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_cat_name
  LIKE '%POTUS';
ct
256760

And what about 'POTUS' in the middle but not at the ends?

SELECT COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_cat_name
  LIKE '_%POTUS%_';
ct
63636
SIGH

OK, 'POTUS' anywhere in the name of the visitee?

SELECT COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_cat_name
  LIKE '%POTUS%';
ct
310853

An even better normalization

Let's make a more normalized field:

ALTER TABLE whvisitors
  ADD COLUMN custom_visitee_slug VARCHAR;

You can index the column now, if you want…

(note how the index name doesn't really matter…just make it unique…)

CREATE INDEX mah_sluggy_index ON
  whvisitors(custom_visitee_slug);

…though generally it's better to wait until after you've done bulk updates…because after a column has been indexed, it has to reindex itself every time values are changed.

Update the column, incrementally

If neither the visitee's last name nor first name is NULL, set visitee_normal_name to the uppercased last and first name, joined by a comma. We can use what I showed in the first demo of UPDATE, except with a WHERE clause

UPDATE whvisitors
SET custom_visitee_slug =
  UPPER(visitee_namelast)
  || ', '
  || UPPER(visitee_namefirst)
WHERE
  visitee_namelast IS NOT NULL
  AND visitee_namefirst IS NOT NULL;

(This will take about 30 seconds)

Now, if the visitee's last_name is NULL, set visitee_normal_name equal to the visitee's uppercased first name.

Note that I add an extra condition to the WHERE clause so I don't accidentally overwrite the existing custom_visitee_slug

UPDATE whvisitors
SET custom_visitee_slug =
  UPPER(visitee_namelast)
WHERE
  visitee_namelast IS NOT NULL
  AND custom_visitee_slug IS NULL

Finally, for all rows in which there is a visitee_namefirst but not a last name:

UPDATE whvisitors
SET custom_visitee_slug =
  UPPER(visitee_namefirst)
WHERE
  visitee_namefirst IS NOT NULL
  AND custom_visitee_slug IS NULL

OK, now how many POTUSi are there?

SELECT custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE
  custom_visitee_slug LIKE 'POTUS%'
GROUP BY custom_visitee_slug
ORDER BY ct DESC
LIMIT 10;
custom_visitee_slug ct
POTUS 229887
POTUS/FLOTUS 44371
POTUS/VPOTUS 961
POTUS/JONES/DYER 6
POTUS/LISA 6
POTUS/COHEN MITCHELL 5
POTUS/MINH-HAI 4
POTUS/ELLIE 2
POTUS/FERIAL 1
POTUS/MATTHEW 1

And just to check…everything that doesn't end with POTUS:

SELECT custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE
  custom_visitee_slug LIKE '_%POTUS%'
GROUP BY custom_visitee_slug
ORDER BY ct DESC
LIMIT 10;
custom_visitee_slug ct
/, POTUS 12024
VPOTUS 8395
AND, POTUS 4508
HANKINS, POTUS/HANNAH 1366
POTUS/VPOTUS 961
FLOTUS, POTUS/ 683
/DESIREE, POTUS 590
PEELE, POTUS/CHRISTIAN 350
HOLDREN, POTUS/CHRIS 320
TWIGG, POTUS/CARRI 296

Who visited the POTUS?

Let's just stick with = 'POTUS'

SELECT
  NAMELAST,
  NAMEFIRST,
  custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_slug = 'POTUS'
GROUP BY NAMELAST, NAMEFIRST, custom_visitee_slug
ORDER BY ct DESC
LIMIT 10;
NAMELAST NAMEFIRST custom_visitee_slug ct
Prather Alan POTUS 157
Mottola AnnaMaria POTUS 109
Rose Christopher POTUS 95
Boguslaw Robert POTUS 89
Clay Aaron POTUS 84
Wilson Russell POTUS 84
Sabo Eric POTUS 81
Dewey Glenn POTUS 79
Pelosi Nancy POTUS 68
Fettig Jason POTUS 62

For now, let's ignore the case-sensitive grouping problem…

Are all of these people important? Sure…Alan Prather is a biologist.

But what about people who have visited the President just a few times? Let's reverse the order of ct:

SELECT
  NAMELAST,
  NAMEFIRST,
  custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_slug = 'POTUS'
GROUP BY NAMELAST, NAMEFIRST, custom_visitee_slug
ORDER BY ct ASC
LIMIT 10;
NAMELAST NAMEFIRST custom_visitee_slug ct
  BRANDEE POTUS 1
  DOUGLAS POTUS 1
  SUSAN POTUS 1
AABY CHRISTOPHER POTUS 1
AANGEENBRUG ELIZABETH POTUS 1
AARON ADRIENNE POTUS 1
AARON ANITA POTUS 1
AARON DANIEL POTUS 1
AARON KATHERINE POTUS 1
AARONSON BURTON POTUS 1

Just how many people are there?

We need to do an aggregate count for when the count is less than 5 visits:

SELECT
  COUNT(*) AS ct
FROM whvisitors
WHERE custom_visitee_slug = 'POTUS'
GROUP BY UPPER(NAMELAST),
  UPPER(NAMEFIRST),
  custom_visitee_slug
HAVING ct < 5;

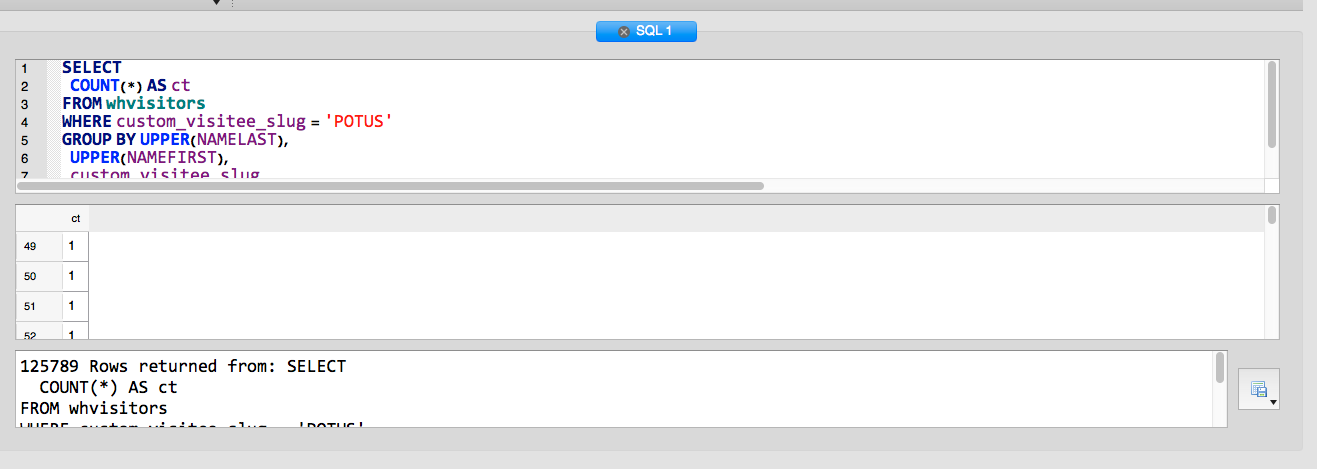

The result looks something like this:

/image

Basically, a lot.

Do some research

It's clear that doing a search for people who visited the president will not show just the important people. So let's start with someone we know is famous:

select COUNT(*) from whvisitors
where NAMELAST LIKE 'JORDAN' AND NAMEFIRST LIKE 'MICHAEL%';
COUNT(*)
53

That is way too many…Let's narrow it down. We think Michael Jordan, the basketball player, will get a direct visit with the president:

select COUNT(*) from whvisitors
where NAMELAST LIKE 'JORDAN'
AND NAMEFIRST LIKE 'MICHAEL%'
AND custom_visitee_slug LIKE 'POTUS%';
COUNT(*)
3

Let's see the nature of these visits:

select NAMELAST,
  NAMEFIRST,
  NAMEMID,
  APPT_START_DATE,
  Total_People,
  MEETING_ROOM,
  Description,
  custom_visitee_slug
from whvisitors
where NAMELAST LIKE 'JORDAN'
AND NAMEFIRST LIKE 'MICHAEL%'
AND custom_visitee_slug LIKE 'POTUS%';
NAMELAST NAMEFIRST NAMEMID APPT_START_DATE Total_People MEETING_ROOM Description custom_visitee_slug
JORDAN MICHAEL   2011-03-17 18:00 609 STATE FLOO ST PATRICK'S DAY RECEPTION POTUS
Jordan Michael J 2012-05-29 12:00 1 Oval Offic   POTUS
Jordan Michael J 2012-12-31 11:15 157 SCA   POTUS

But it's hard to know for sure…apparently there are a lot of people named "Michael Jordan". From the 2009 White House Press Release:

A lot of people visit the White House, up to 100,000 each month, with many of those folks coming to tour the buildings. Given this large amount of data, the records we are publishing today include a few “false positives” – names that make you think of a well-known person, but are actually someone else.

In September, requests were submitted for the names of some famous or controversial figures (for example Michael Jordan, William Ayers, Michael Moore, Jeremiah Wright, Robert Kelly ("R. Kelly"), and Malik Shabazz). The well-known individuals with those names never actually came to the White House. Nevertheless, we were asked for those names and so we have included records for those individuals who were here and share the same names.

How about LeBron?

OK, we definitely know this guy has come by:

select NAMELAST,
  NAMEFIRST,
  NAMEMID,
  APPT_START_DATE,
  Total_People,
  MEETING_ROOM,
  Description,
  custom_visitee_slug
from whvisitors
where NAMELAST LIKE 'James'
AND NAMEFIRST LIKE 'Lebron%';
NAMELAST NAMEFIRST NAMEMID APPT_START_DATE Total_People MEETING_ROOM Description custom_visitee_slug
James Lebron R 2013-01-28 11:30 83 state floo   POTUS
James Lebron R 2014-01-14 12:30 85 State Floo The event is on the State Floor. POTUS

OK, let's copy from other people

POLITCO story on secret visitors:

Jon Stewart’s secret White House visits - Obama, aides took unusual steps to cultivate “Daily Show” comic.

Jon Stewart slipped unnoticed into the White House in the midst of the October 2011 budget fight, summoned to an Oval Office coffee with President Barack Obama that he jokingly told his escort felt like being called into the principal’s office.

In February 2014, Obama again requested Stewart make the trip from Manhattan to the White House, this time for a midmorning visit hours before the president would go before television cameras to warn Russia that “there will be costs” if it made any further military intervention in Ukraine.

The query:

SELECT *
FROM whvisitors
WHERE
  NAMELAST LIKE 'Stewart'
  AND NAMEFIRST LIKE 'Jon%'
  AND
    (APPT_START_DATE LIKE '2011-10%'
      OR APPT_START_DATE LIKE '2014-02%');

Let me highlight a few important fields:

Here is how Jon Stewart is described, and the type of appointment he made, including number of visitors:

SELECT
  NAMELAST, NAMEFIRST, NAMEMID,
  "Type of Access",
  APPT_MADE_DATE,
  APPT_START_DATE,
  APPT_END_DATE,
  Total_People
FROM whvisitors
WHERE
  NAMELAST LIKE 'Stewart'
  AND NAMEFIRST LIKE 'Jon%'
  AND
    (APPT_START_DATE LIKE '2011-10%'
      OR APPT_START_DATE LIKE '2014-02%');
NAMELAST NAMEFIRST NAMEMID Type of Access APPT_MADE_DATE APPT_START_DATE APPT_END_DATE Total_People
stewart jon n VA 2011-10-17 00:00:00.000000 2011-10-19 09:00 2011-10-19 23:59 1
stewart jon n VA 2011-10-20 00:00:00.000000 2011-10-20 09:45 2011-10-20 23:59 1
Stewart Jon n VA 2014-02-27 00:00:00.000000 2014-02-28 12:00 2014-02-28 23:59 2
Stewart Jon n VA 2014-02-28 00:00:00.000000 2014-02-28 12:00 2014-02-28 23:59 1
Stewart Jon n VA 2014-02-25 00:00:00.000000 2014-02-28 12:30 2014-02-28 23:59 1

Things to notice:

OK, let's look at a few other fields:

SELECT
  lastEntryDate,
  LAST_UPDATEDBY,
  CALLER_NAME_LAST,
  CALLER_NAME_FIRST,
  MEETING_LOC,
  MEETING_ROOM,
  visitee_namelast,
  visitee_namefirst
FROM whvisitors
WHERE
  NAMELAST LIKE 'Stewart'
  AND NAMEFIRST LIKE 'Jon%'
  AND
    (APPT_START_DATE LIKE '2011-10%'
      OR APPT_START_DATE LIKE '2014-02%');
LastEntryDate LAST_UPDATEDBY CALLER_NAME_LAST CALLER_NAME_FIRST MEETING_LOC MEETING_ROOM visitee_namelast visitee_namefirst
2011-10-17 17:19 NK KOLACHALAM NAMRATA WH west wing Vega Dag
2011-10-20 09:06 NK KOLACHALAM NAMRATA WH west wing Vega Dag
2014-02-27 17:44 AB BRECKENRIDGE ANITA WH Oval Offic   POTUS
2014-02-28 09:39 AB BRECKENRIDGE ANITA WH Oval Offic   POTUS
2014-02-25 10:50 AB BRECKENRIDGE ANITA WH Oval Offic   POTUS

Things to notice:

Searching for the powerful people we don't know

Obviously, POTUS is someone who is important. But what about all the other people out there?

SELECT
  custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE
  custom_visitee_slug NOT LIKE '%POTUS%'
GROUP BY custom_visitee_slug
ORDER BY ct DESC
LIMIT 5;
custom_visitee_slug ct
OFFICE, VISITORS 2943728
FLOTUS 21407
LIERMAN, KYLE 19881
LAMBREW, JEANNE 18939
DOEBLER, MAX 10712

Using what we know about visitor count

SELECT
  custom_visitee_slug,
  COUNT(*) AS ct
FROM whvisitors
WHERE
  custom_visitee_slug NOT LIKE '%POTUS%'
  AND Total_People < 3
GROUP BY custom_visitee_slug
ORDER BY ct DESC
LIMIT 10;
custom_visitee_slug ct
OFFICE, VISITORS 39532
ZIENTS, JEFF 1556
JAYARATNE, LADINI 1527
TCHEN, TINA 1478
METZENBAUM, SHELLEY 1474
FURMAN, JASON 1405
SPERLING, GENE 1233
MCDONOUGH, DENIS 1196
KALIL, TOM 1164
LIERMAN, KYLE 1155

(To be continued…)
