Tutorials

Creating Tables and Importing Data for Baby Names and University Employees

How to create SQL tables and import raw data using the DB Browser for SQLite client.

Table of contents

TK creating a database from scratch

Importing the baby names data

This is the Social Security Administration baby names data that we've used in previous tutorials, except now you'll see how to create a database from scratch, including the process of downloading the file and importing the relevant text file.

Unlike the previous tutorials, we will only create a single table consisting of a single year's worth of data. You can assume that getting all of the data is just repeatedly following the import process as described below.

Download the data

From the Social Security Administration homepage, click on the National data file: https://www.ssa.gov/oact/babynames/names.zip

Unzip the file, it should contain text files for every year, prefixed with yob (i.e. "year of birth"):


Open any one of the text files to see what they contain. For example, this is what the first five lines of yob1990.txt looks like:

Jessica,F,46466
Ashley,F,45549
Brittany,F,36535
Amanda,F,34406
Samantha,F,25864

The main takeaway is that there are no column headers. But we can imagine what they might be: name, sex, and babies.

Creating a table with the CREATE TABLE statement

Creating a new database table requires a whole different syntax. For starters, we are no longer SELECT-ing data. Instead, we use the CREATE TABLE statement:

CREATE TABLE "the_table_name"(
  "column_1" DATATYPE,
  "column_2" ANOTHER_DATATYPE
);

The SQLite documentation on creating tables is here, but it may be a bit dense. Basically, the CREATE TABLE statement consists of the name of the table and its schema, i.e. its columns – including the name and the type of data contained in each column.

A typical CREATE TABLE statement consists of these elements:

So to create

CREATE TABLE babynames(
  "name" VARCHAR,
  "sex" CHAR,
  "babies" INTEGER
);

What's VARCHAR and CHAR? In other flavors of SQL, they are the keywords for columns that contain text strings of varied or mostly-constant length, which is an important detail for massive databases but doesn't matter for what we're doing. But I do it out of habit in the above snippet: you can see that I've made the sex column CHAR datatype because it's either 'M' or 'F', i.e. a single character. Whereas the text strings name column can vary with length.

Technically, SQLite doesn't care. According to the SQLite documentation, there are only three It only have a few It doesn't really matter, you could even do this:

CREATE TABLE babynames(
  "name" TEXT,
  "sex" TEXT,
  "babies" INT
);

After executing the CREATE TABLE statement and then going to the tab to browse the database structure, you'll see something like this:

screenshot

Note: In a previous example, I named the 'babies' column as 'count', but have not bothered to fix the screenshot. You get the idea.

How to DROP and re-create a table

Before we actually import data into the table, let's pretend we messed up the CREATE TABLE statement and we have a table with misnamed or ill-defined columns. As it turns out in SQLite, there's a limited subset of commands we can do to alter/fix an existing table: rename the table or add columns. We cover adding columns in the next chapter – and apparently we can't rename columns.

It's frequently easier just to delete the table and start over. So that's what we'll do with the DROP TABLE statement.

The syntax to drop a table is much simpler than creating one:

DROP TABLE babynames;

Note that in a SQLite GUI client, such as SQLite Browser, you can usually delete a table by right-clicking its name and selecting from a pop-up menu. But if you want to drop a table because you want to immediately re-create it, it's almost always faster to execute the DROP TABLE and CREATE TABLE commands via copy-and-paste:

DROP TABLE babynames;
CREATE TABLE babynames(
  "name" VARCHAR,
  "sex" CHAR,
  "babies" INTEGER
);

Note: If you run a CREATE TABLE query when the table already exists, you'll get an error message. Same thing if you try to drop a non-existent table.

Importing the data via GUI

For the remainder of these tutorials, the only time we'll be dependent on a GUI client is for the importing of data. This is because of how complicated it is for programs to parse comma-delimited (or any kind of delimited) text files. So SQLite, the language and database, do not have built-in, robust parsers that we can easily invoke with just SQL code as we can when creating, dropping, and querying tables.

Luckily, DB Browser for SQLite has point-and-click importing – as do other free SQLite clients, such as the Firefox SQLite Manager plugin

The following instructions are for DB Browser for SQLite on Mac, though DB Browser is cross-platform so the steps should hopefully be the same.

In the menubar, click File > Import > Table from CSV…

screenshot

Select the file to import. For the remainder of this tutorial, I'll be using the yob1990.txt file, i.e. names for babies in 1990. If for some reason you can't get this from the official Social Security Administration site, you can download it from my mirror:

stash.padjo.org/dumps/2015/yob1990.txt

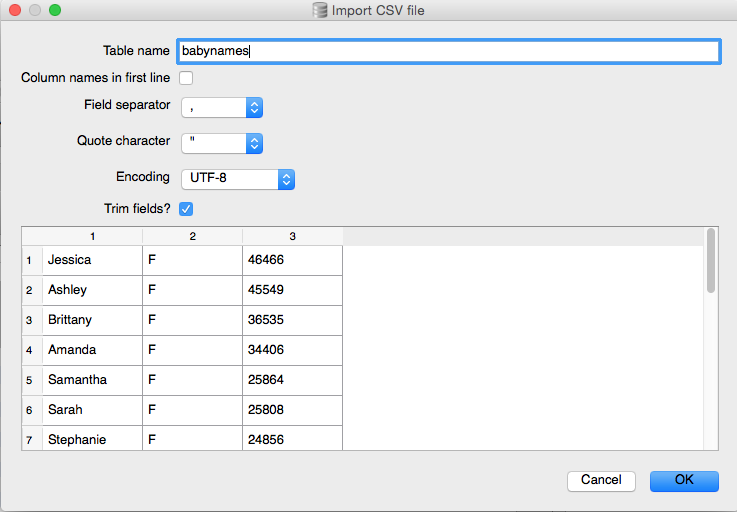

After selecting the text file to import, the GUI client brings up a new dialog box with a couple of important settings to mind:

screenshot

Important import settings
  • Make sure the Table name field has the exact name as the name of the table that you had just created, i.e. babynames
  • As we saw when previewing the raw text files, there are no column headers. So uncheck the checkbox titled, Column names in first line, because, the column names aren’t in the first line.

The DB Browser client will ask you if you want to really insert into an existing table. Click Yes.

After the import is finished, you can select the Browse Data view to see the data inside the table:

screenshot

Note: There's no year column for this babynames table. I've left it out for now because we don't need it for this exercise. But generally, that kind of context should be kept. I guarantee you if you re-open this database next week, you'll have no idea what year that set of baby names data came from.

Saving the data in DB Browser

The DB Browser client, in an attempt to share some familiar user-facing features with Excel, has a feature in which changes we make to the data are not automatically "saved" to file. We have to manually do this by going to the menubar and selecting File > Write Changes.

Or just use the Cmd-S keyboard shortcut.

Testing queries on the baby names

We'll do review of basic SQL in another lesson. For now, let's just make sure the babynames table contains what we think it does:

Top 5 girl names

SELECT *
FROM babynames
WHERE sex = 'F'
ORDER BY babies DESC
LIMIT 5;
name sex babies
Jessica F 46466
Ashley F 45549
Brittany F 36535
Amanda F 34406
Samantha F 25864

Top 5 names that begin with the letter Z

SELECT *
FROM babynames
WHERE name LIKE 'Z%'
ORDER BY babies DESC
LIMIT 5;
name sex babies
Zachary M 20424
Zachery M 1228
Zachariah M 757
Zackary M 743
Zackery M 543

Importing the Florida state university data

OK, now on to the Florida state salaries data. We'll go through the exact same steps as described above: create a table, then import into it.

The state of Florida has set up a landing page for its [state payroll data]http://floridahasarighttoknow.myflorida.com/search_state_payroll). For now, we are going to focus on the State University System – as of November 2015, this consists of "Payroll Information provided by Florida's 12 State Universities"

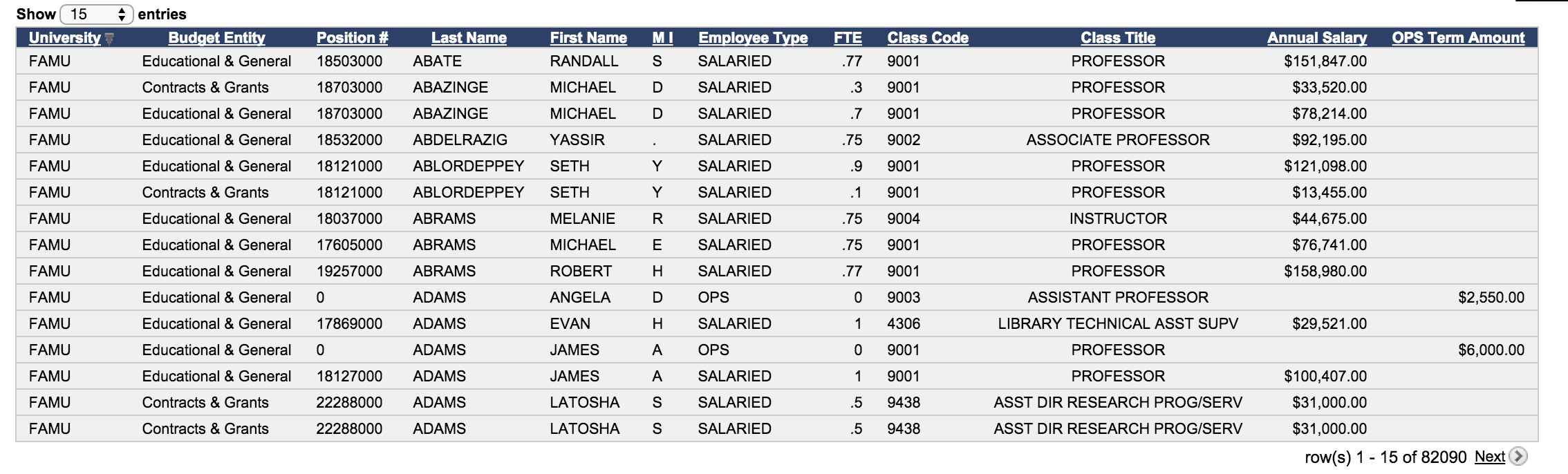

Here's a screenshot of the public-facing database:


Download the data

If you look at the right-side of the state university payroll webpage, you'll see a link to Export All.

But don't click that. Instead, download my snapshot of the data:

florida-salaries-2015-11–cleaned.csv

It's roughly the same thing, except you don't have to deal with some funky formatting (line endings/file encoding) of the original file. Plus, I've renamed the headers so that multiple-word column headers, such as 'Last Name', are now single words, e.g. 'LastName. This makes it slightly easier to reference them in SQL commands.

Here's what the data looks like, with the columns transposed to show all of the titles and a couple of sample rows.

In particular, the ClassTitle, FirstName, and AnnualSalary columns are most interesting to us.

Column name Row 9 Row 100 Row 25000
University FAMU FAMU FSU
BudgetEntity Educational & General Educational & General Auxiliaries
PositionNumber 19257000 0 60518
LastName ABRAMS BARE HILL
FirstName ROBERT CEIL WILLIAM
MI H P .
EmployeeType SALARIED OPS SALARIED
FTE .77 0 1
ClassCode 9001 9001 6526
ClassTitle PROFESSOR PROFESSOR CUSTODIAL WORKER
AnnualSalary 158980   21279
OPSTermAmount   4500

Other columns of interest:

Can you write the SQL command to create the empty table? Here's a hint to start it off:

CREATE TABLE "florida_positions" (
  "University" VARCHAR,
  "some other column" SOMETYPE
);

Note that the FTE column can contain a decimal number (i.e. to indicate a part-time position); we can use the FLOAT data type to describe it (i.e. floating-point number).

Here's what I ended up with:

CREATE TABLE "florida_positions" (
  "University" VARCHAR,
  "BudgetEntity" VARCHAR,
  "PositionNumber" VARCHAR,
  "LastName" VARCHAR,
  "FirstName" VARCHAR,
  "MI" VARCHAR,
  "EmployeeType" VARCHAR,
  "FTE" FLOAT,
  "ClassCode" VARCHAR,
  "ClassTitle" VARCHAR,
  "AnnualSalary" INTEGER,
  "OPSTermAmount" INTEGER
);

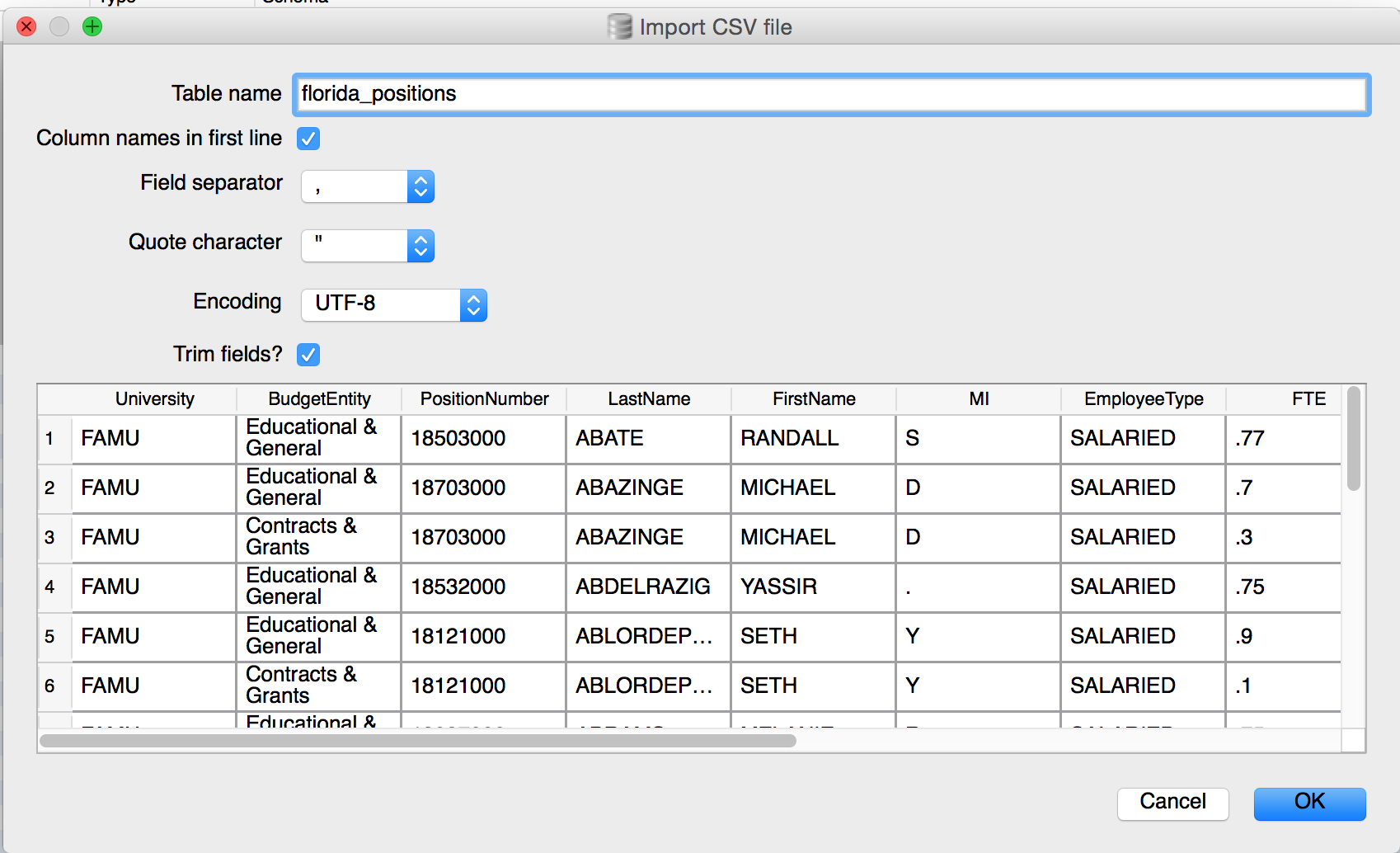

Importing the salaries data

Again, make sure you spell the name of the table correctly.

Unlike the baby names data, this file does come with file headers. So also make sure the Column names in first line checkbox is checked:


After the import is finished, remember to select File > Write Changes, i.e. save the database, i.e. keyboard shortcut Cmd-S.

Testing the salaries data

Let's run some queries to see if it works. When dealing with salaries, you can't go wrong by just seeing who is paid the most:

SELECT *
FROM florida_positions
ORDER BY AnnualSalary DESC
LIMIT 5;

Oops, this doesn't look right: all rows in which AnnualSalary was blank show up at top, due to the way SQLite orders things:

University BudgetEntity PositionNumber LastName FirstName MI EmployeeType FTE ClassCode ClassTitle AnnualSalary OPSTermAmount
FAMU Educational & General 0 ADAMS ANGELA D OPS 0.0 9003 ASSISTANT PROFESSOR   2550
FAMU Educational & General 0 ADAMS JAMES A OPS 0.0 9001 PROFESSOR   6000
FAMU Educational & General 0 ADAMS SHAWANNA D OPS 0.0 9004 INSTRUCTOR   2400
FAMU Educational & General 0 ADETU COLLINS . OPS 0.0 9004 INSTRUCTOR   4001
FAMU Educational & General 0 AKINS MONICA Q OPS 0.0 9004 INSTRUCTOR   600

For now, we can use a WHERE clause to filter the records to include only valid AnnualSalary values:

SELECT *
FROM florida_positions
WHERE AnnualSalary != ''
ORDER BY AnnualSalary DESC
LIMIT 5;
University BudgetEntity PositionNumber LastName FirstName MI EmployeeType FTE ClassCode ClassTitle AnnualSalary OPSTermAmount
UF Contracts & Grants 00000000 FRIEDMAN WILLIAM A SALARIED 0.97 9001 PROFESSOR 961281
UF Contracts & Grants 00000805 GUZICK DAVID S SALARIED 1.0 9001 PROFESSOR 905000
UF Contracts & Grants 00000000 KESHAVARZI SASSAN . SALARIED 0.97 9003 ASSISTANT PROFESSOR 730685
UF Contracts & Grants 00000000 CHALAM KAKARLA V SALARIED 0.96 9001 PROFESSOR 680685
UF Contracts & Grants 00005361 FUCHS WESLEY K SALARIED 0.77 9001 PROFESSOR 661340

Well, I was surprised. My assumption was that head football coaches would dominate the top-paid employees, especially in a football-loving state such as Florida.

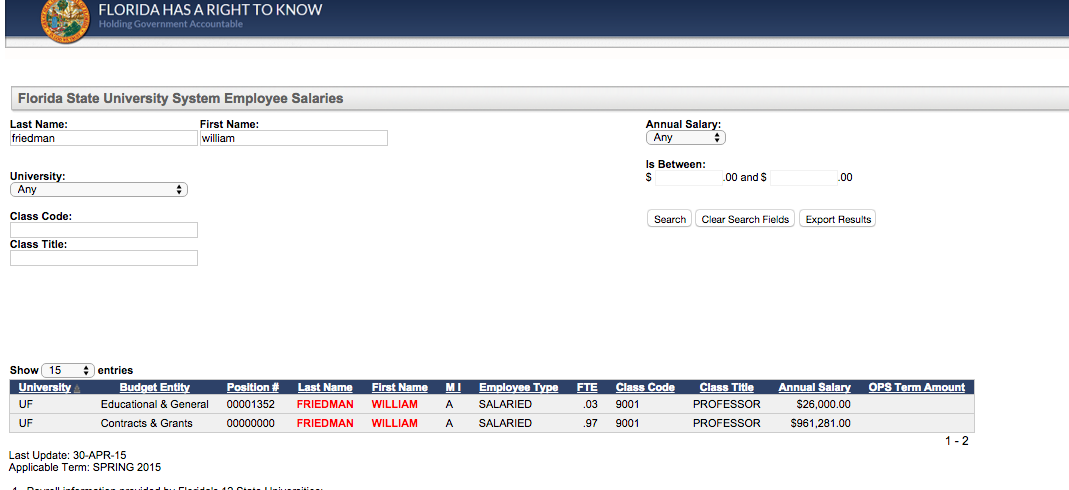

Let's do a search for WILLIAM FRIEDMAN using the state of Florida's official university salaries database to confirm our results:


Doing a Google search for professor salaries in Florida brings up this 2011 Orlando Sentinel article, "Here's what Florida professors earn". Friedman is mentioned as the second-highest-paid employee at the time. But this comes with some caveats about the data:

But faculty leaders such as Tom Auxter, president of United Faculty of Florida, pointed out that the database is misleading in that it doesn't attempt to explain why about 20 professors make more than $500,000 a year…Some are paid large salaries because they bring in significant amounts of money through grants and other revenue sources for research. These other sources often provide at least part of their income, a fact that can easily be overlooked when reading the governor's online database.

…UF professor William Friedman is the second-highest-paid university employee. He earns about $808,000 as UF's director of the Preston Wells Center for Brain Tumor Therapy.

So the posted salary amount isn't necessarily state money, though there's no breakdown. I don't think that'll affect our gender gap analysis, though.

Here's a summary view that groups all the records by University and counts/totals various interesting columns:

SELECT
  University,
  COUNT(*) AS num_positions,
  SUM(FTE) AS total_ftes,
  SUM(AnnualSalary) AS total_salary,
  SUM(OpsTermAmount) AS total_ops_money
FROM florida_positions
GROUP BY University
ORDER BY total_salary DESC;

Looks like University of Florida is the biggest, followed by University of South Florida and Florida State:

University num_positions total_ftes total_salary total_ops_money
UF 28230 13029.1000000002 1107624366.0 59872807.0
USF 14051 6507.12000000004 455211836.0 33948786.0
FSU 11872 5977.07 390502925.0 22904955.0
FIU 8292 4694.62999999999 335808488.0 11897985.0
UCF 7059 5489.98999999996 322528069.0 10654698.0
FAU 5453 2508.53 178094535.0 8632644.0
FAMU 2403 1659.93 105909139.0 3221786.0
UNF 2283 1730.29 98778082.0 1711024.0
FGCU 1916 1177.94 77051199.0 1784315.0
UWF 1707 1228.77 70879208.0 1222309.0
NCF 345 251.64 14697859.0 105542.0
FPU 173 130.0 9470242.0 164200.0

References
