The syntax for retrieving and displaying data from a SQLite tables
Data to use: San Francisco restaurants inspection data
If you're struggling with learning SQL, it helps to take a step back and think about why we're even learning it in the first place. This guide is meant to be a walkthrough of how I think when exploring a dataset and how that translate into actual SQL commands.
So treat this as an iterative exploration of the data, starting with relatively simple syntax to find the simple things we first want to know about.
Throughout this guide, I'll try to link to relevant tutorials. Try to follow this walkthrough and think about how to solve some of the questions I pose, but feel free to check the tutorials for more detailed explanations.
The syntax for retrieving and displaying data from a SQLite tables
How to calculate sum, average, and other aggregates with the GROUP BY clause.
The San Francisco Department of Health is responsible for food facility inspections. Here is the landing page for the inspections program, which includes a chart describing their scoring system: 90 to 100 points is "Good". Getting below a 85 means there were probably "several high-risk violations".
If you look closely, you'll see a link to a public-facing searchable database:
https://101g-xnet.sfdph.org:8443/ords/f?p=132:1
Yeah, that URL isn't particularly human-friendly. But the search is straightforward. Here's the detail page for a particular restaurant:
To download the raw data, they host a ZIP file containing 3 files.
If you want to skip the trouble of importing the CSV data into SQLite, feel free to use my database file here:
The SQLite database contains 3 tables from the 3 CSV files:
businesses
- unique identifiers, names, addresses, geospatial coordinates, and other data related to each individual businessinspections
- contains a row for each inspection, including the business_id of the inspected business, the score it received (if applicable), the date of the inspection, and the reason for the inspectionviolations
- contains a row for every violation, including the severity and a short description of the violation. It contains business_id and an inspection date which can presumably be used to join against the inspections data.Here's a PDF user manual of what's in the data.
So what should we first ask about a new database? No matter what table we start with, it's always worth asking: how many rows are in the table?.
If we start with the businesses
table, the answer to this query is ostensibly a rough estimate of the restaurants, eateries, and other food-serving establishments in all of San Francisco. And just how many is that, exactly? 5,000? 25,000? Knowing even a ballpark estimate will quickly lead to other questions.
So let's start with a SELECT
and COUNT
.
If you're using a client such as DB Browser for SQLite, then you're used to the convenience of its data navigating features. For you, finding out how many rows in a given table is just a matter of pressing the Browse Data function and looking at the big number in the lower left of the window:
So why bother writing a query to count rows for a table?
Don't get me wrong; DB Browser is great (and generously given away via open source). But it's just one tool and one approach to data work –specifically, to allow spreadsheet-users to interact with SQL without having to learn complicated SQL commands.
We also crave simplicity, but because we aspire to do complicated and intensive data analysis, we should gravitate towards being able to directly command our computers (or, in this case, a database).

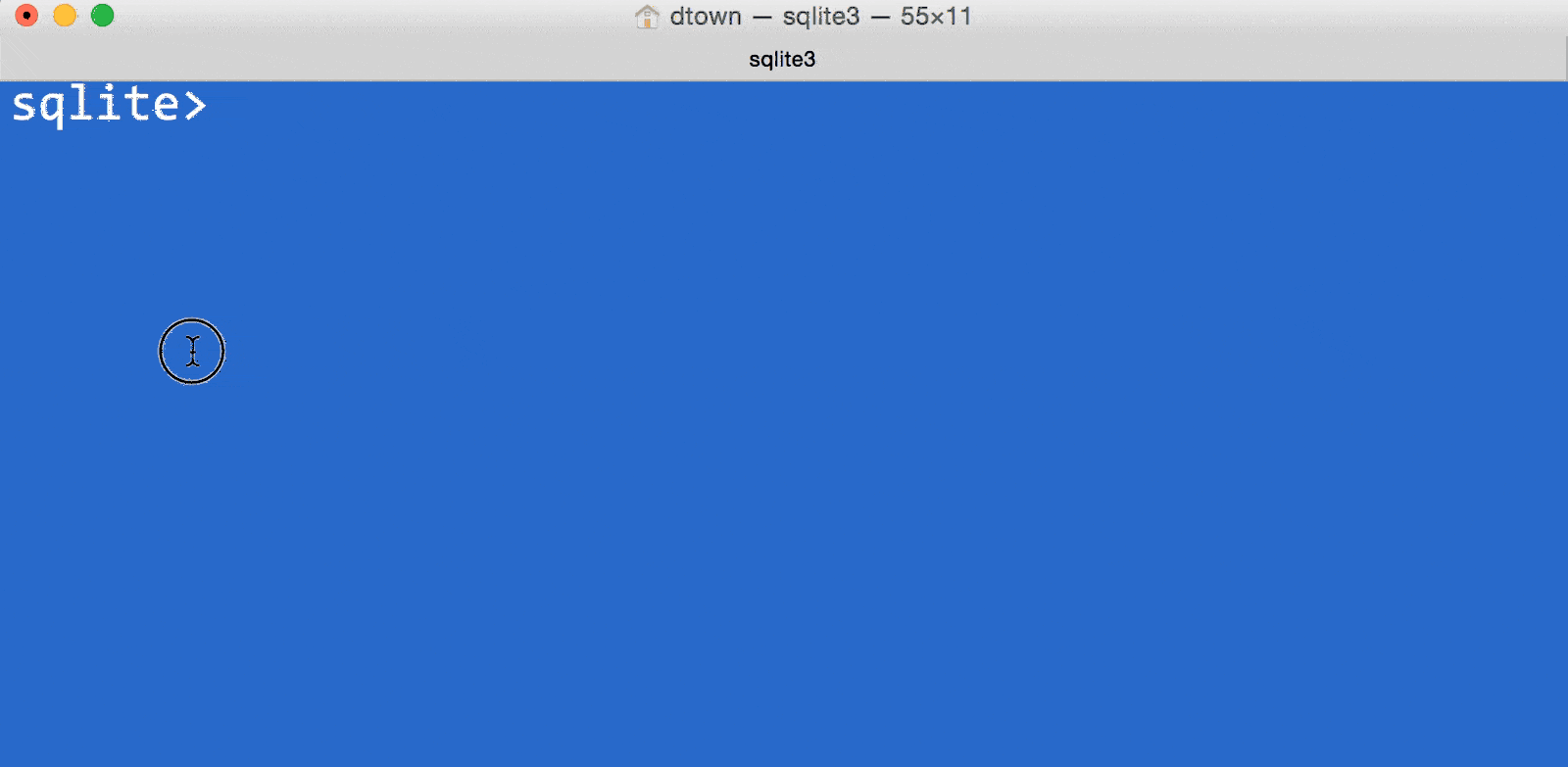

What does directly commanding our SQLite database look like? Well, you can always work straight from the command-line. It's just you, and the interpreter waiting for you to ask it a question:
Actually, this is probably not the time to discover the CLI – at least when you're trying to learn SQL. But just keep in mind that it is possible to move past the GUI, and that comes both with the familiarity of typing things out and being able to think about how to explore the data, regardless of interface.
So, back to getting a count of rows:
SELECT COUNT(*)
FROM businesses;
How to specify the quantity and arrangement of data rows returned by the SQL database.
A few keywords to prettify and organize the results of SQL queries.
Let's look at a few of the rows:
SELECT *
FROM businesses
LIMIT 5;
The output is too wide to comfortably show on this page so I'll do a PRAGMA table_info(businesses);
call to get the schema layout:
cid | name | type | notnull | dflt_value | pk |
---|---|---|---|---|---|
0 | business_id | INTEGER | 1 | 0 | |
1 | name | VARCHAR | 0 | 0 | |
2 | address | VARCHAR | 0 | 0 | |
3 | city | VARCHAR | 0 | 0 | |
4 | postal_code | INTEGER | 0 | 0 | |
5 | latitude | FLOAT | 0 | 0 | |
6 | longitude | FLOAT | 0 | 0 | |
7 | phone_number | BIGINT | 0 | 0 | |
8 | TaxCode | VARCHAR | 0 | 0 | |
9 | business_certificate | INTEGER | 0 | 0 | |
10 | application_date | DATE | 0 | 0 | |
11 | owner_name | VARCHAR | 0 | 0 | |
12 | owner_address | VARCHAR | 0 | 0 | |
13 | owner_city | VARCHAR | 0 | 0 | |
14 | owner_state | VARCHAR | 0 | 0 | |
15 | owner_zip | VARCHAR | 0 | 0 |
Most of the columns aren't that interesting, other than perhaps address
, latitude
, and longitude
, if we want to later map things. The owner_address
is potentially interesting. But for now, let's just stick to the name
column:
SELECT name
FROM businesses
LIMIT 5;
I'm not sure why the first entry contains a blank name…but it's a sign for things to come, in terms of discovering just how messy this dataset can be…
name |
---|
100% Dessert Cafe |
1001 Castro St |
101 Super Mart, Inc. |
1058 Hoagie |
How to retrieve rows based on whether they match specified values.
The WHERE clause is where SQL starts to become very interesting for searching large datasets. With WHERE, we can now filter the results according to conditions we explicitly set.
How many places serve up pizza in San Francisco? One way to get a lower-bound estimate is to filter for all businesses with 'PIZZA'
in the name:
SELECT name
FROM businesses
WHERE name = 'PIZZA'
LIMIT 10;
The above query returns 0 results because the query is limited to finding all places in which the name is literally'PIZZA'
, which doesn't include "Pizza Hut" or even "Pizza" (i.e. non-uppercase).
Real-world data is often messy, so we need messy ways of matching values, because matching only on exact values can unintentionally filter out relevant data.
This is where the LIKE
clause and wildcards come in handy. We can specify all names that begin with 'PIZZA'
and not worry about the capitalization:
SELECT name
FROM businesses
WHERE name LIKE 'PIZZA%'
LIMIT 10;
name |
---|
PIZZA HUT |
PIZZA HUT #758280 |
PIZZA INFERNO |
Pizza Express |
Pizza Joint |
Pizza Joint |
Pizza Joint & Grill |
Pizza Joint and Grill |
Pizza Orgasmica |
Pizza Orgasmica & Brewing Co. |
We get everything from 'PIZZA HUT'
to 'Pizza Orgasmica & Brewing Co.'
. But our wildcard will leave out places in which 'pizza'
is at the middle or end of a name, such as 'Dominos Pizza'
. That's easy to fix:
SELECT name
FROM businesses
WHERE name LIKE '%PIZZA%'
LIMIT 5;
That change in the query nets us places as exotic as 'AT&T -Room 2130 Derby Grill/Port Walk Pizza [145178]'
.
To answer our original question - how many pizza places are in San Francisco? - let's use a COUNT
function just to get the number of results:
SELECT COUNT(*)
FROM businesses
WHERE name LIKE '%PIZZA%';
OK, now that we've seen a bit of the businesses
table, let's look at what the inspections
table has. Let's repeat some of our previous exploration technique and first find out how many rows the inspections
table has:
SELECT COUNT(*)
FROM inspections;
More than 30,000, which is definitely more than the 7,000+ businesses. What does this mean exactly? Intuitively, we can guess that each business can have one or more inspections, i.e. a one-to-many relationship. Let's check out the first few rows of inspections
:
SELECT *
FROM inspections
LIMIT 5;
business_id | Score | date | type |
---|---|---|---|
10 | 2014-08-07 | Reinspection/Followup | |
10 | 94 | 2014-07-29 | Routine - Unscheduled |
10 | 2014-01-24 | Reinspection/Followup | |
10 | 92 | 2014-01-14 | Routine - Unscheduled |
10 | 98 | 2012-11-14 | Routine - Unscheduled |
OK, that business_id
column should look familiar – it shows up in the businesses
table. Here, it appears to repeat itself, as if all of these inspections were on a single business. Another key takeaway is that not all inspections result in a Score
being given.
However, the main takeaway is that there appears to be no name
column in inspections
, so we can't do a simple query to find the inspections for a given 'PIZZA HUT'
:
SELECT *
FROM inspections
WHERE name = 'PIZZA HUT';
Let's practice our aggregate queries, beyond COUNT
.
How to calculate sum, average, and other aggregates with the GROUP BY clause.
First, we don't even know how old or how freshly updated this dataset is. So let's use MIN
and MAX
on the date
field
SELECT MIN(date), MAX(date)
FROM inspections;
MIN(date) | MAX(date) |
---|---|
2012-10-01 | 2015-12-30 |
Seeing how I'm writing this on October 20, 2015, i.e. 2015-10-20
, I'm not sure how there's already an inspection with the date of 2015-12-30
. So right away, we've learned that the data is not in perfect shape. Or that our assumptions – i.e. every record in inspections
corresponds to an inspection that has actually occurred.
I'm curious to what that is, so let's just do a plain SELECT
and WHERE
using the result from the previous query:
SELECT *
FROM inspections
WHERE date = '2015-12-30';
business_id | Score | date | type |
---|---|---|---|
34181 | 2015-12-30 | Routine - Scheduled | |
Uh OK, looks like events that are "Scheduled" are in this table. Let's do one more query and see how many future events there are:
SELECT *
FROM inspections
WHERE date > '2015-10-20';
business_id | Score | date | type |
---|---|---|---|
76245 | 2015-11-20 | New Ownership | |
34181 | 2015-12-30 | Routine - Scheduled |
OK, only two events are actually in the future. You'd think there'd be more than that in all of the city of San Francisco…so this is the kind of thing we would ask a public information officer about it. My bet is that it's a typo, but who knows…
Let's focus on the score of these inspections, notably, their range and average. We can start by using the average, minimum, and maximum functions:
SELECT AVG(Score),
MAX(Score),
MIN(Score)
FROM inspections;
AVG(Score) | MAX(Score) | MIN(Score) |
---|---|---|
91.5912412959659 | 100 | 42 |
Let's throw in aliases and a rounding function to make the headers more attractive:
SELECT ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections;
avg_score | max_score | min_score |
---|---|---|
92.0 | 100 | 42 |
We saw that there were multiple kinds of reports. Do they all have scores? An easy way to find out is to include the type
column in the output and GROUP BY
it. Let's throw in a COUNT
function to get a count of report types, too:
With the use of the GROUP BY clause, we gain the ability to aggregate our data based on values in a given column or columns. At the very least, this let’s us count the number of unique values in that column.
SELECT
type,
COUNT(*) as total_count,
ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections
GROUP BY type;
type | total_count | avg_score | max_score | min_score |
---|---|---|---|---|
Administrative or Document Review | 6 | |||
Complaint | 1894 | |||
Complaint Reinspection/Followup | 200 | |||
Emergency Response Investigation | 1 | |||
Foodborne Illness Investigation | 104 | |||
Multi-agency Investigation | 4 | |||
New Construction | 1290 | |||
New Ownership | 1917 | |||
Non-inspection site visit | 1045 | |||
Reinspection/Followup | 6722 | 85.0 | 85 | 85 |
Routine - Scheduled | 87 | 86.0 | 86 | 86 |
Routine - Unscheduled | 17678 | 92.0 | 100 | 42 |
Special Event | 2 |
As it turns out, there are only 3 types of reports that are scored:
Reinspection/Followup
Routine - Scheduled
Routine - Unscheduled
We can re-jigger our previous query to only include reports that have an actual Score
:
This tutorial is from last year’s class. Even though it uses MySQL, the syntax is pretty much the same.
SELECT
type,
COUNT(*) as total_count,
ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections
WHERE Score IS NOT NULL
GROUP BY type;
type | total_count | avg_score | max_score | min_score |
---|---|---|---|---|
Reinspection/Followup | 1 | 85.0 | 85 | 85 |
Routine - Scheduled | 1 | 86.0 | 86 | 86 |
Routine - Unscheduled | 17375 | 92.0 | 100 | 42 |
Strangely, only 1
report of the non-routine-unscheduled type has a score. That could be a data entry error. Either way, grouping by type
is not particularly interesting.
So let's group by time period. Let's get the aggregate tally in the previous query, but for each different year. There is no year column so we have to make our own from the date
column. I'll just go with the easy SUBSTR
function:
Think of these as spreadsheet functions.
Let's test it out by itself:
SELECT SUBSTR(date, 1, 4) AS year
FROM inspections
LIMIT 5;
That works. Let's do a group count to get a breakdown of inspections by year, because we don't even know how far back the records go:
SELECT SUBSTR(date, 1, 4) AS year,
COUNT(*)
FROM inspections
GROUP BY year;
year | COUNT(*) |
---|---|
2012 | 2929 |
2013 | 10789 |
2014 | 10820 |
2015 | 6412 |
We know from a previous query that the earliest date
is 2012-10-01
, so it makes sense that 2012
is short. And 2015
has two months yet to go (as of publication date). So it looks like the SF health department averages roughly 10,000 inspection activities a year.
Now let's see if the average or range of scores has changed per given year:
SELECT
SUBSTR(date, 1, 4) AS year,
COUNT(*) as total_count,
ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections
WHERE Score IS NOT NULL
GROUP BY year;
year | total_count | avg_score | max_score | min_score |
---|---|---|---|---|
2012 | 1477 | 92.0 | 100 | 52 |
2013 | 6077 | 91.0 | 100 | 42 |
2014 | 6309 | 92.0 | 100 | 46 |
2015 | 3514 | 92.0 | 100 | 54 |
Looks like things are pretty boring with a year-by-year analysis. We could try a grouping by year and month to see if there are any interesting peaks or valleys (i.e. holiday seasons):
SELECT
SUBSTR(date, 1, 7) AS year_month,
COUNT(*) as total_count,
ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections
WHERE Score IS NOT NULL
GROUP BY year_month;
year_month | total_count | avg_score | max_score | min_score |
---|---|---|---|---|
2012-10 | 636 | 93.0 | 100 | 55 |
2012-11 | 451 | 91.0 | 100 | 55 |
2012-12 | 390 | 91.0 | 100 | 52 |
2013-01 | 539 | 91.0 | 100 | 58 |
2013-02 | 464 | 92.0 | 100 | 60 |
2013-03 | 533 | 92.0 | 100 | 54 |
2013-04 | 596 | 92.0 | 100 | 56 |
2013-05 | 503 | 91.0 | 100 | 54 |
2013-06 | 478 | 91.0 | 100 | 54 |
2013-07 | 416 | 90.0 | 100 | 49 |
2013-08 | 549 | 93.0 | 100 | 55 |
2013-09 | 553 | 91.0 | 100 | 51 |
2013-10 | 584 | 92.0 | 100 | 42 |
2013-11 | 478 | 91.0 | 100 | 58 |
2013-12 | 384 | 91.0 | 100 | 55 |
2014-01 | 456 | 91.0 | 100 | 62 |
2014-02 | 681 | 92.0 | 100 | 59 |
2014-03 | 722 | 92.0 | 100 | 67 |
2014-04 | 827 | 93.0 | 100 | 60 |
2014-05 | 640 | 91.0 | 100 | 46 |
2014-06 | 738 | 92.0 | 100 | 53 |
2014-07 | 281 | 90.0 | 100 | 63 |
2014-08 | 399 | 91.0 | 100 | 63 |
2014-09 | 500 | 92.0 | 100 | 55 |
2014-10 | 457 | 91.0 | 100 | 47 |
2014-11 | 361 | 91.0 | 100 | 56 |
2014-12 | 247 | 89.0 | 100 | 54 |
2015-01 | 380 | 91.0 | 100 | 60 |
2015-02 | 385 | 92.0 | 100 | 57 |
2015-03 | 533 | 92.0 | 100 | 55 |
2015-04 | 520 | 92.0 | 100 | 54 |
2015-05 | 376 | 91.0 | 100 | 62 |
2015-06 | 388 | 92.0 | 100 | 64 |
2015-07 | 267 | 91.0 | 100 | 54 |
2015-08 | 380 | 92.0 | 100 | 60 |
2015-09 | 285 | 92.0 | 100 | 59 |
Without graphing the data, we can't tell if there are any noticeable cyclical trends. Though it does seem that the months of December have significantly fewer inspections.
How about the day of the week? We might suspect that inspections on weekends, or maybe even on a Monday, can differ based on how on top of things a restaurant is.
This requires use of SQLite's STRFTIME
function, which, if you've never used before…it's one that you gradually learn, after much effort. I'll just show the result with STRFTIME
and passing in '%w'
as the first argument:
SELECT
STRFTIME('%w', date) as week_day,
COUNT(*) as total_count,
ROUND(AVG(Score)) AS avg_score,
MAX(Score) AS max_score,
MIN(Score) AS min_score
FROM inspections
WHERE Score IS NOT NULL
GROUP BY week_day;
week_day | total_count | avg_score | max_score | min_score |
---|---|---|---|---|
0 | 351 | 97.0 | 100 | 77 |
1 | 2982 | 91.0 | 100 | 46 |
2 | 3868 | 91.0 | 100 | 53 |
3 | 3955 | 91.0 | 100 | 50 |
4 | 3285 | 92.0 | 100 | 42 |
5 | 2691 | 93.0 | 100 | 51 |
6 | 245 | 97.0 | 100 | 79 |
What does 0
stand for? That is, does the beginning of the week start on the Monday or Sunday? (the definition differs between software and languages, which yes, is very annoying).
We could look it up, but I think it's safe to say that 0
stands for Sunday, given how few inspections happen then. Likewise, a weekday of 6
seems to correspond to Saturday.
Let's go back to the businesses
table. It contains human-readable identifiers for places, such as the restaurant's name
and address
. The inspections
table contains important information about how those restaurants have performed in health inspections.
Let's pretend we only care about In-N-Out Burger (BTW, you can see its inspection history on the SF health department's webpage). I pick In-N-Out Burger because I know there is only one in all of San Francisco and I love In-N-Out Burger, as do all great people.
This is the query I would use to get the relevant fields from businesses
: name, address, latitude, longitude, and business_id:
SELECT business_id, name, address, latitude, longitude
FROM businesses
WHERE name LIKE 'In-N-Out Burger';
business_id | name | address | latitude | longitude |
---|---|---|---|---|
5104 | In-N-Out Burger | 333 Jefferson St | 37.807923 | -122.417887 |
We can use the result (i.e. business_id = 5104
) to retrieve all of the inspections associated with In-N-Out. When it comes to the inspections
table, we care about the date
of the inspection, the type
of inspection, and when it happened:
SELECT date, type, Score
FROM inspections
WHERE business_id = '5104';
date | type | Score |
---|---|---|
2012-12-24 | Routine - Unscheduled | 100 |
2013-10-10 | Routine - Unscheduled | 100 |
2014-04-03 | Routine - Unscheduled | 98 |
2014-04-03 | Complaint | |
2015-05-20 | Routine - Unscheduled | 100 |
Looks like In-N-Out did pretty good, though apparently someone had something to complain about…
But one of the inspections yielded a score of less than a perfect 100
, which implies that some problem was found.
But how do we find those specific problems found in a given inspection? That's where the violations
table comes in.
OK, we know the drill. First, how many rows are there?
SELECT COUNT(*)
FROM violations;
Roughly 44,000, which means on average, there are a few more than 1 violation per inspection.
What are the data columns in the violations
table?
SELECT *
FROM violations
LIMIT 3;
business_id | date | ViolationTypeID | risk_category | description |
---|---|---|---|---|
10 | 2014-01-14 | 103154 | Low Risk | Unclean or degraded floors walls or ceilings |
10 | 2014-01-14 | 103145 | Low Risk | Improper storage of equipment utensils or linens |
10 | 2014-01-14 | 103119 | Moderate Risk | Inadequate and inaccessible handwashing facilities |
I'll skip the exploration via aggregates – let's pretend I need to know, in a hurry, what sin In-N-Out has committed. How do we match up violation to business? Looks like violations
also keeps track of business_id
; modifying our previous query using inspections
:
SELECT date, risk_category, description
FROM violations
WHERE business_id = '5104';
date | risk_category | description |
---|---|---|
2014-04-03 | Low Risk | Unapproved or unmaintained equipment or utensils |
…Meh…? Well good to know it's not vermin. Again, you can check out In-N-Out's record on the SF health data site.
All this manual querying makes it difficult to do anything more than just a one-by-one lookup. That's where joins come in.
This tutorial is from last year’s class. Even though it uses MySQL, the syntax is pretty much the same.
…
SELECT businesses.name AS biz_name,
businesses.address AS biz_address,
inspections.Score AS score,
CAST(inspections.date AS CHAR) AS inspection_date,
violations.description AS violation_description
FROM businesses
INNER JOIN inspections
ON businesses.business_id = inspections.business_id
INNER JOIN violations
ON inspections.business_id = violations.business_id
AND inspections.date = violations.date
WHERE inspection_date > "2014"
AND biz_name LIKE '%STARBUCKS%'
AND score < 90
AND violations.risk_category = 'High Risk'
ORDER BY score;
biz_name | biz_address | score | inspection_date | violation_description |
---|---|---|---|---|
Starbucks Coffee Co | 0264 Kearny St | 85 | 2014-01-03 | Improper cooling methods |
Starbucks Coffee | 201 Powell St | 87 | 2015-03-17 | Unclean hands or improper use of gloves |
STARBUCKS COFFEE #9219 | 333 MARKET St | 89 | 2014-10-03 | High risk food holding temperature |
STARBUCKS COFFEE CO | 1231 MARKET St | 89 | 2014-12-30 | Unclean hands or improper use of gloves |
STARBUCKS | 350 RHODE ISLAND | 89 | 2014-03-19 | No hot water or running water |
SELECT
(CASE WHEN
name LIKE '%STARBUCKS%'
THEN 'Starbucks'
ELSE 'Peets' END) AS "company",
address, business_id
FROM businesses
WHERE
name LIKE '%STARBUCKS%'
OR name LIKE '%PEET%'
